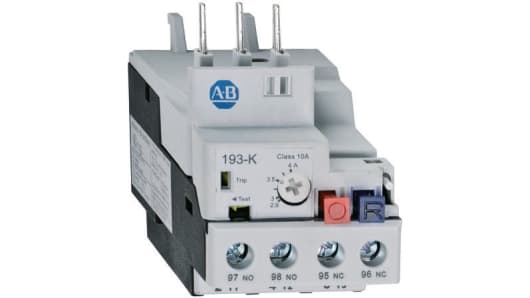

Allen Bradley Overload Relay - 1NO + 1NC, 1.1 ? 1.6 A F.L.C, 1.6 A Contact Rating, 6 W, 690 Vac, Bulletin
Description193-K Miniature Bi-metallic Overload RelayProtects motor against overload and phase lossTrip class 10Auxiliary switch 1N/O and 1N/CStable, shock-resistant direct mounting on 100-K contactorBuilt in trip contact 95//96 and signal contact 97//98Auto/manual reset selectable on devicevisible trip indicationTest/trip actuatorStop actuatorSpecifications Attribute Value FLC Motor Rating 1.1 ? 1.6 A Contact Current...
Description
193-K Miniature Bi-metallic Overload Relay
Protects motor against overload and phase loss
Trip class 10
Auxiliary switch 1N/O and 1N/C
Stable, shock-resistant direct mounting on 100-K contactor
Built in trip contact 95//96 and signal contact 97//98
Auto/manual reset selectable on device
visible trip indication
Test/trip actuator
Stop actuator
Trip class 10
Auxiliary switch 1N/O and 1N/C
Stable, shock-resistant direct mounting on 100-K contactor
Built in trip contact 95//96 and signal contact 97//98
Auto/manual reset selectable on device
visible trip indication
Test/trip actuator
Stop actuator
Specifications
| Attribute | Value |
| FLC Motor Rating | 1.1 ? 1.6 A |
| Contact Current Rating | 1.6 A |
| Control Voltage | 690 Vac |
| Range | Bulletin |
| Series | 193-K |
| Mounting Style | Clip On |
| Power Rating | 6 W |
| Normal State Configuration | 1NO + 1NC |
| Terminal Type | Screw |
| Reset Method | Automatic, Manual |
| Number Of Auxiliary Contacts | 2 |
| Width | 44.9mm |
| Depth | 78.7mm |
| Length | 50mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +60°C |
| Operating Temperature Range | -20 ? +60 °C |
| Contact Voltage Rating | 690 V ac |
