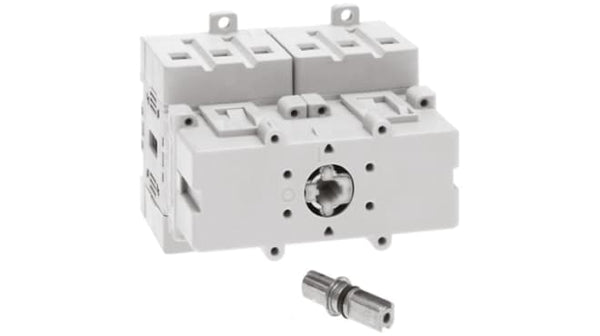

Allen-Bradley 194E-E25-1756 25 A 194E Load switch
DescriptionDescription AC23A rating for Technical Specification differential. 3 pole versions supplied complete with handle. Allen Bradley MCS Range The 194E switch disconnector range forms part of the Modular Control System (MCS) 9mm grid system and similarly features compact design, modularity and extensive choice. All switch materials can be recycled. Universal...
DescriptionDescription AC23A rating for Technical Specification differential. 3 pole versions supplied complete with handle.
Allen Bradley MCS Range
The 194E switch disconnector range forms part of the Modular Control System (MCS) 9mm grid system and similarly features compact design, modularity and extensive choice. All switch materials can be recycled. Universal terminal screws are fitted for ’Pozidriv’ or flat blade screwdriver. The switching category is AC23A.
Specifications
Allen Bradley MCS Range
The 194E switch disconnector range forms part of the Modular Control System (MCS) 9mm grid system and similarly features compact design, modularity and extensive choice. All switch materials can be recycled. Universal terminal screws are fitted for ’Pozidriv’ or flat blade screwdriver. The switching category is AC23A.
Specifications
| Attribute | Value |
| Number of Poles | 6P |
| Maximum Current | 25A |
| Mounting Type | Panel Mount |
| IP Rating | IP66 |
| Power Rating | 11kW |
| Voltage Rating | 690V ac |
| Accepts Padlocks | Yes |
| Switch Rating | 20kA |
| Length | 90mm |
| Width | 45mm |
| Depth | 60mm |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -25°C |
| Terminal Type | Wire Lead |
