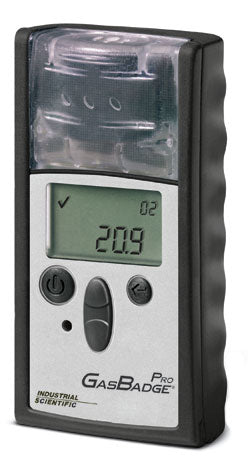

GasBadge Pro Single-Gas Monitor
GasBadge Pro Single-Gas MonitorGasBadge Pro communicates directly via an infrared interface to optional accessories like the DSX™ Docking Station, Datalink and infrared printer to further simplify and automate calibration, bump testing and data downloading. Standard STEL and TWA readings and datalogging of up to one year of survey data are...
GasBadge Pro Single-Gas Monitor
GasBadge Pro communicates directly via an infrared interface to optional accessories like the DSX™ Docking Station, Datalink and infrared printer to further simplify and automate calibration, bump testing and data downloading. Standard STEL and TWA readings and datalogging of up to one year of survey data are featured along with an event-logger that records the past 15 alarm events.
Its simple and intuitive four-button navigation allows easy operation and access to calibration functions. With a lifetime warranty the GasBadge Pro is smart choice for single gas detection.
| Specification | Detail Description |
|---|---|
| SENSOR SPECIFICATIONS | |
| CO | |
| Measuring Range | 0-1500ppm |
| Resolution | 1ppm |
| H2S | |
| Measuring Range | 0-500ppm |
| Resolution | 0.1ppm |
| O2 | |
| Measuring Range | 0-30% by volume |
| Resolution | 0.1% |
| NO2 | |
| Measuring Range | 0-150ppm |
| Resolution | 0.1ppm |
| SO2 | |
| Measuring Range | 0-150ppm |
| Resolution | 0.1ppm |
| NH3 | |
| Measuring Range | 0-500ppm |
| Resolution | 1ppm |
| CL2 | |
| Measuring Range | 0-100ppm |
| Resolution | 0.1ppm |
| CLO2 | |
| Measuring Range | 0-1ppm |
| Resolution | 0.01ppm |
| PH3 | |
| Measuring Range | 0-10ppm |
| Resolution | 0.01ppm |
| HCN | |
| Measuring Range | 0-30ppm |
| Resolution | 0.1ppm |
| H2 | |
| Measuring Range | 0-2000ppm |
| Resolution | 1ppm |
| Size | 9.4 x 5.08 x 2.79 cm / 3.7 x 2 x 1.1 in. |
| Weight | 85g / 3oz. |
| Temperature | -40 to +60°C / 40 to +140°F |
| Humidity | 0% - 99% RH (non-condensing) |
| Alarms | User selectable low and high alarms, Ultra-bright LED’s, loud audible alarm (95dB) and vibrating alarm |
| Display | Custom LCD with graphical icons for ease of use, segmented display for direct gas readings,backlight for low light conditions |
| “Go/No Go” display mode | |
| Peak reading indication | |
| Typical battery life | User replaceable 3V, CR2 Lithium battery, 2600 hour run-time, typical |
| Case | Rugged, water-resistant polycarbonate shell with protective concussion-proof overmold. RFI resistant |
| Sensors | CO, H2S, O2, NO2, SO2, NH3, CL2, CLO2, PH3, HCN, H2, CO/H2S Null |
| Warranty | Warranted for as long as the unit is supported by Industrial Scientific Corporation |
| Certifications and approvals | |
| UL/cUL | Class I, Groups A,B,C,D T4; Class II, Groups E,F,G; Class I, Zone 0, AEx ia IIC T4 |
| CSA | Class I, Groups A B C D T4; Ex ia IIC T4 |
| ATEX | Ex ia I/Ex ia IIC T4; Equipment Group and Category; I M1/II 1G |
| IECEx | Ex ia I/IIC T4 |
| ANZEx | Ex ia I/IIC T4 |
| INMETRO | Ex ia I Ma; Ex ia IIC T4 Ga |
| China EX | Ex ia I/IIC T4 |
| KOSHA | Ex ia I/IIC T4 |
| IP Rating | Third party certified IP64 |
